DSG Diagnostics
Fault scans, live data, electrical testing, hydraulic assessment, road testing and gearbox-specific diagnostic routines.
Diagnostic ProcessWest End Service Centre
DSG Repair Brisbane
Specialist DSG, Audi S tronic, Porsche PDK and multi-brand dual-clutch gearbox diagnostics and repairs in Brisbane.
From mechatronic and clutch faults to internal gearbox repairs, servicing, coding and adaptations, our diagnosis-first process is designed to identify the actual cause before expensive parts are recommended.
Factory-Level Diagnostics
Mechatronic & Clutch Repairs
DQ · DL · S Tronic · Hybrid DSG
West EndInner Brisbane Workshop
DSG FocusedDry, Wet & Hybrid Systems
Clear ProcessTesting, Findings & Quotation
One WorkshopDiagnosis Through To Repair
DSG And Dual-Clutch Services
Complete Gearbox Repair Solutions
DSG faults can be electronic, hydraulic, mechanical or software-related. Our process separates symptoms from causes so the correct repair path can be quoted.
02

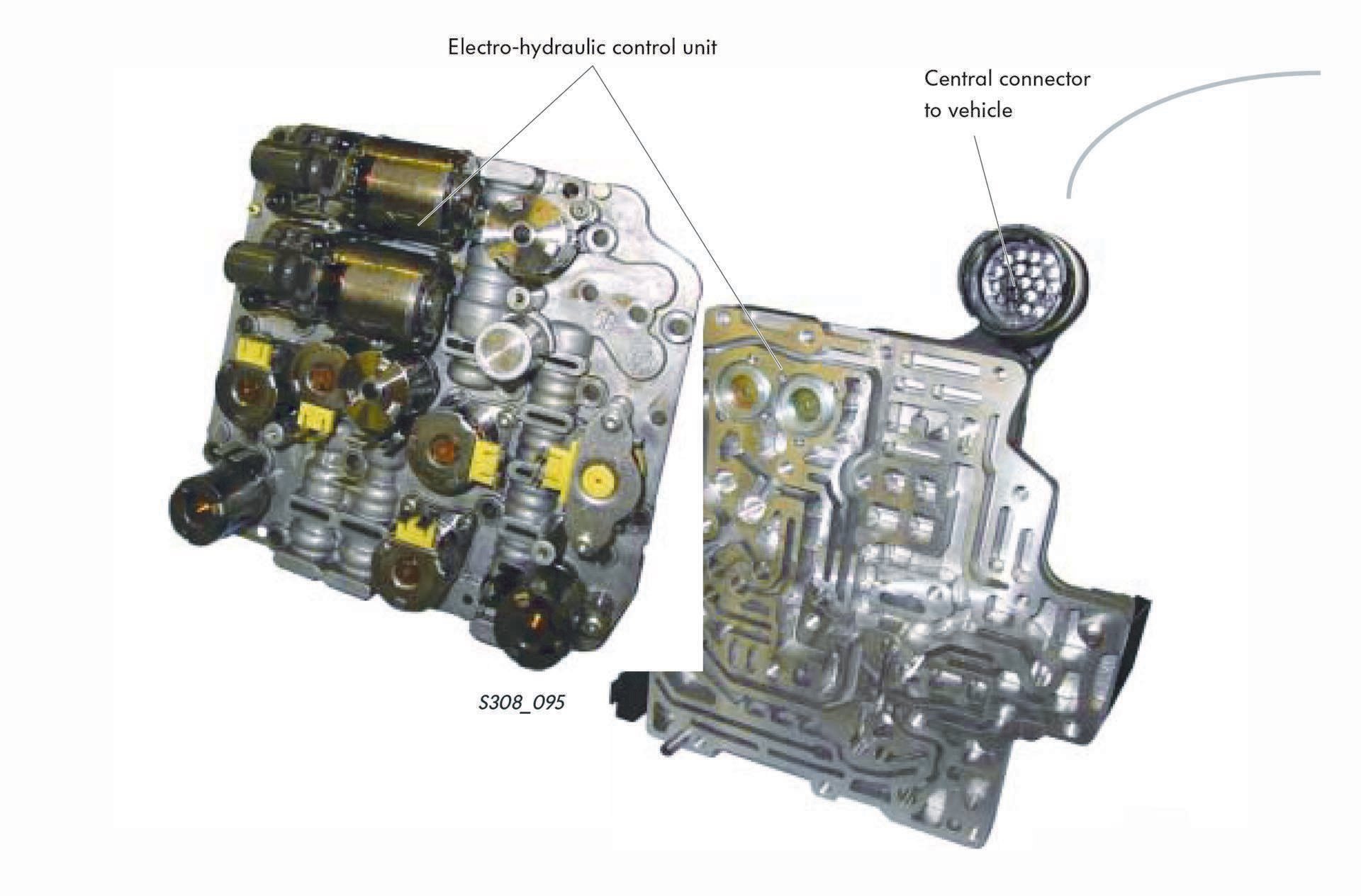

Mechatronic Repairs
Diagnosis of control-unit, pressure, pump, solenoid, sensor and internal hydraulic faults before repair or replacement.
Mechatronic Repairs03

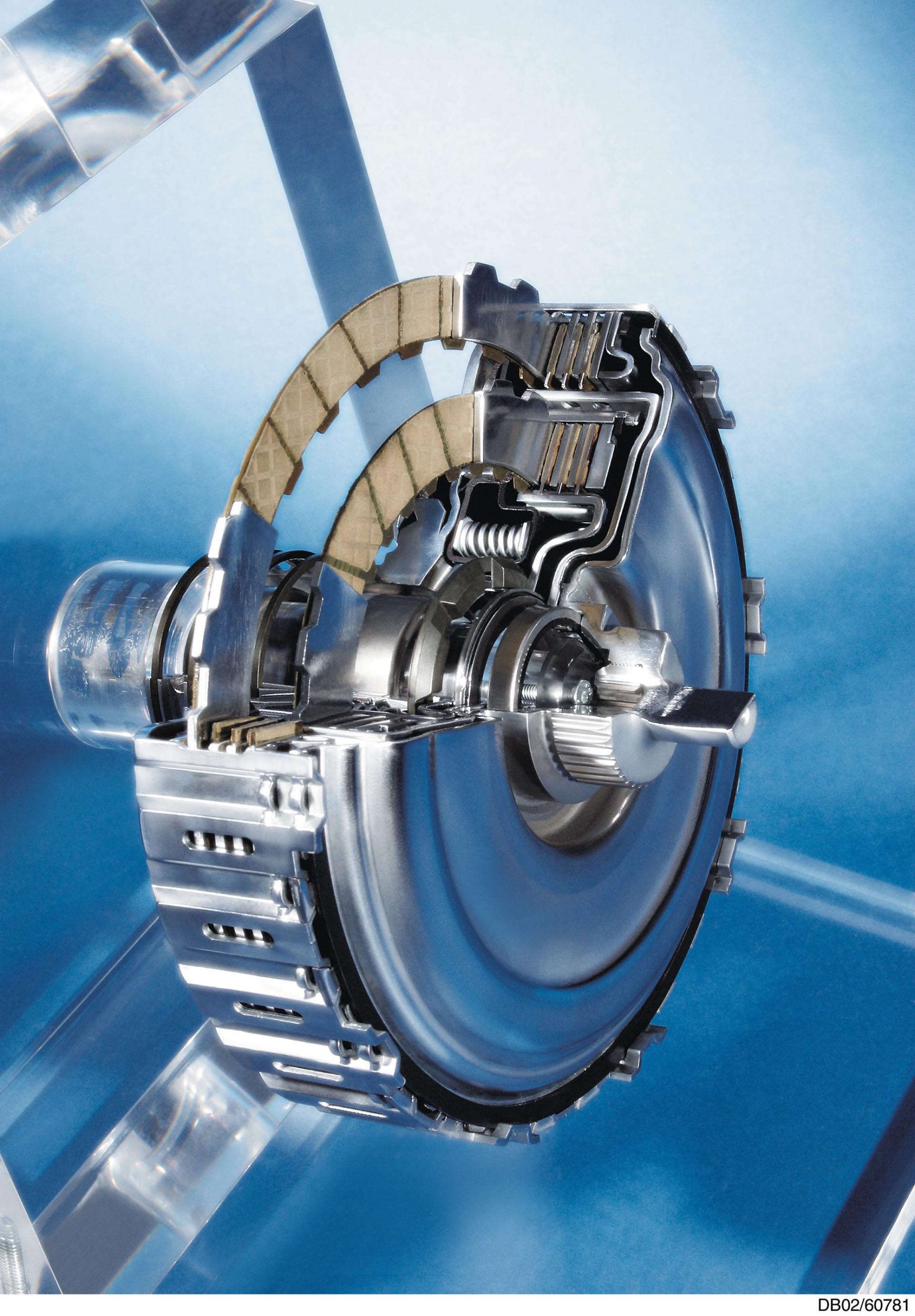

Clutch Pack & Flywheel
Dry and wet clutch assessment, dual-mass flywheel inspection, replacement, setup and required calibration procedures.
Clutch Replacement04
Internal Gearbox Repairs
Removal, dismantling and inspection for bearing, selector, shaft, differential, casing and internal mechanical failures.
Gearbox Guide05
DSG Servicing
Correct fluid, filters, seals and temperature-based level setting for applicable wet-clutch and S tronic systems.
DSG Service06
Coding & Adaptations
Component coding, software checks, basic settings, clutch calibration and adaptation routines after relevant repairs.
07
Hybrid DSG
Appropriate assessment of DQ400e hybrid transmission, mechatronic, pressure and clutch concerns with high-voltage procedures.
Hybrid DSG08
Other Dual-Clutch Systems
Assessment of selected PDK, Ferrari DCT, Lamborghini LDF, PowerShift, EDC, Hyundai/Kia DCT, TC-SST, BMW DCT and other systems, subject to VIN and repair scope.
Dual-Clutch GuideDual-Clutch Brands
More Than Volkswagen DSG
We assess a wider range of dual-clutch transmissions. The exact vehicle, gearbox and repair scope must be confirmed before booking or arranging transport.
Volkswagen Group
Volkswagen DSG, Audi S tronic, Škoda, CUPRA and SEAT.
View DSG RangePorsche PDK
PDK servicing, diagnostics and repair assessment.
Porsche PDKFerrari DCT
Selected Ferrari dual-clutch transmission assessment.
Ferrari DCTLamborghini LDF
Applicable Lamborghini dual-clutch system diagnosis.
Lamborghini DCTHyundai And Kia
Dry and wet six, seven and eight-speed DCT systems.
Hyundai/Kia DCTRenault EDC
EDC clutch, actuator, control and service assessment.
Renault EDCFord And Volvo
Dry and wet PowerShift transmission systems.
PowerShiftMercedes-Benz
7G-DCT, 8G-DCT and selected AMG applications.
Mercedes DCTBMW DCT
Selected BMW M dual-clutch transmission assessment.
BMW DCTMitsubishi TC-SST
Wet dual-clutch performance transmission diagnosis.
TC-SSTAlfa Romeo And Fiat
TCT and DDCT diagnosis for applicable models.
TCT/DDCTNissan And McLaren
GR6 and SSG high-performance DCT assessment.
All BrandsDo Not Guess From The Symptom
Common DSG Fault Symptoms
Different DSG failures can create almost identical symptoms. A shudder may involve the clutch, but it can also involve adaptations, engine performance, mounts, flywheel condition, hydraulic control or internal wear.
A Fault Code Is A Starting Point—Not Always A Complete Diagnosis.
Testing should confirm the cause before an expensive mechatronic, clutch or gearbox assembly is authorised.
01
Flashing PRNDS display or transmission warning message
02
Jerking, shuddering or vibration when taking off
03
Harsh, delayed or inconsistent gear engagement
04
Vehicle will not select Drive or Reverse
05
Loss of odd gears, even gears or particular ratios
06
Limp mode, reduced performance or intermittent drive
07
Rattling, grinding, whining or flywheel noise
08
Gearbox oil leaks, pressure or adaptation faults

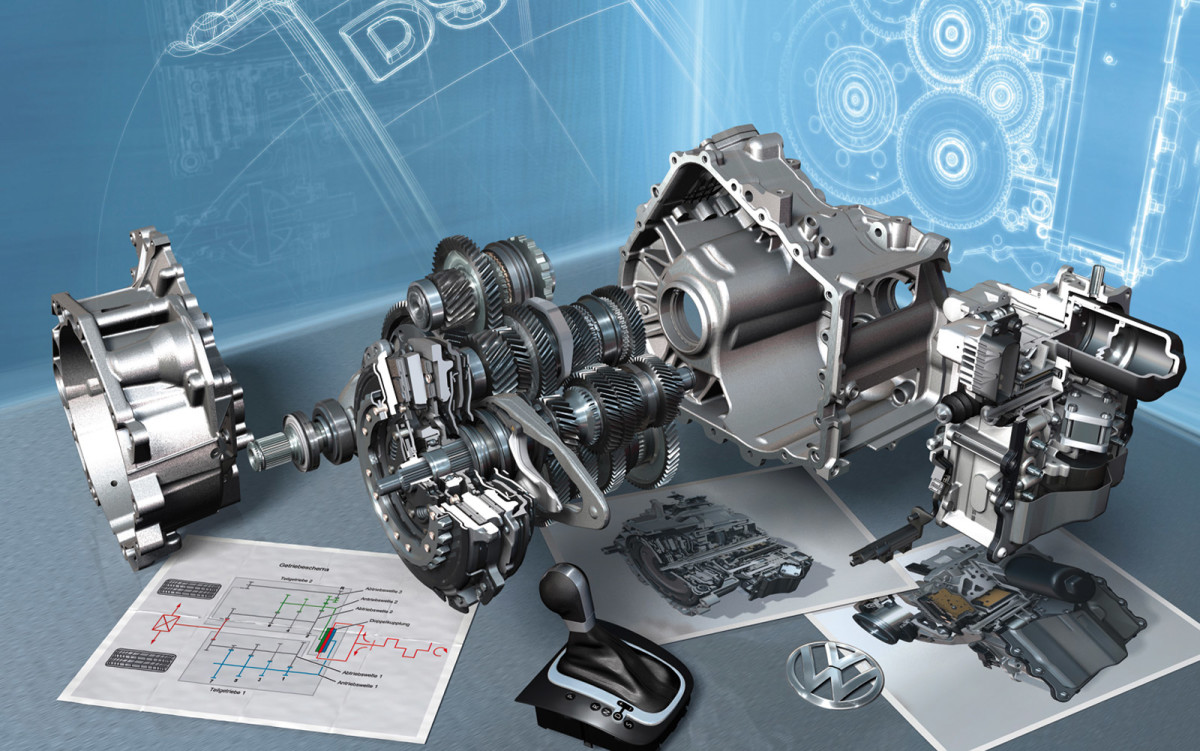

Identify Your Gearbox
DSG And S Tronic Gearbox Families
Vehicle model and gear count are not always enough. Confirmation may require the VIN, gearbox code, build data or a diagnostic scan.
7-SpeedDry Clutch0AM / 0CW
DQ200 DSG
Compact dry-clutch DSG used across many lower-torque Volkswagen Group vehicles.
Common Concerns
- Pressure, pump and accumulator faults
- Clutch shudder or adaptation limits
- No drive or loss of gears
Mechatronic
Power, earth, CAN, pump, pressure, sensor and basic-setting checks help distinguish internal failure from external faults.
Clutch
Dry clutch setup requires correct measurements, tooling and adaptation after installation.
6-SpeedWet Clutch02E / 0D9
DQ250 DSG
Established wet-clutch DSG used in performance, passenger and diesel applications.
Common Concerns
- Harsh engagement
- Clutch pressure and adaptation faults
- Flywheel or internal noise
Service
Specified fluid, filter and temperature-based level setting are essential.
Repair
Mechatronic, clutch, flywheel and internal gearbox faults require separate assessment.
7-SpeedWet Clutch0DE
DQ380 DSG
A less common seven-speed wet-clutch unit often found in selected imported or overseas-market vehicles.
Identification
VIN, code and market specification should be confirmed before parts are ordered.
Common Concerns
Mechatronic pressure, clutch adaptation, loss of gears and internal noise.
Parts
Availability and software compatibility can vary between markets.
7-SpeedWet Clutch0GC
DQ381 DSG
Modern transverse wet-clutch DSG requiring detailed clutch-position, pressure and pump data assessment.
P1735 / P1736
Clutch-position faults require wiring, power, earth, CAN and live-data testing before an internal sensor is condemned.
Mechatronic
Hydraulic, pump, sensor and control faults may trigger limp mode or loss of gears.
Service
Use the exact procedure and fluid for the vehicle and gearbox variant.
6-SpeedHybrid DCT0DD
DQ400e Hybrid DSG
Combines a dual-clutch transmission, electric drive motor and hybrid separation clutch.
Hybrid Diagnosis
Transmission, hybrid and high-voltage systems must be assessed together.
Pressure
Accumulator, pump and mechatronic pressure faults require safe guided procedures.
Safety
High-voltage isolation and trained personnel are required for transmission work.
7-SpeedWet Clutch0BH / 0BT
DQ500 DSG
Higher-capacity DSG used in selected performance, SUV and commercial applications.
P1735 / P1736
Clutch-position sensor faults require external circuit and live-data confirmation.
Clutch
Contamination or clutch damage can lead to secondary mechatronic and internal repairs.
Internal Repair
Dismantling may be required before a definitive parts quotation is possible.
7-SpeedLongitudinal0CK / 0CL / 0CJ / 0HL
DL382 S Tronic
Longitudinal Audi S tronic with different front-wheel-drive, quattro and ultra variants.
Identification
Variant and oil-circuit information must be confirmed before servicing.
Common Concerns
Clutch, mechatronic, pressure, oil-level and driveline faults.
Repair
Internal faults may require transmission removal and dismantling.
7-SpeedLongitudinal0B5
DL501 S Tronic
Longitudinal Audi wet-clutch transmission with specialised mechatronic and lubrication requirements.
Mechatronic
Circuit-board, pressure, solenoid and sensor faults can affect gear selection.
Clutch
Slip, shudder and contamination require clutch and oil assessment.
Internal Repair
Bearing, selector and gear damage may only be confirmed after dismantling.
7-SpeedHigh Performance0BZ
Audi R8 0BZ S Tronic
High-performance dual-clutch unit requiring vehicle-specific diagnosis, parts confirmation and repair planning.
Diagnosis
Full scan, clutch, selector, hydraulic, temperature and driveline data.
Repair Scope
Confirmed case by case based on vehicle, fault, tooling and parts availability.
Before Booking
Supply the VIN, warning messages, codes and repair history.
Detailed Repair Guides
How We Approach DSG Repairs
The repair path changes with the evidence. These are the main stages used to move from a symptom to an informed recommendation.
Confirm the complaint, scan related modules, review freeze-frame data, identify the gearbox and carry out baseline voltage, wiring, leak, fluid and mechanical checks.
Assess power, earth, CAN, pump, pressure, solenoid, sensor, selector and clutch-position data. Software, coding and basic-setting results are also considered.
Review adaptation and wear data, reproduce slip or shudder, assess engine torque delivery, mounts and flywheel condition, and inspect contamination where access permits.
When testing indicates internal damage, the gearbox may need to be removed and dismantled. Bearings, gears, shafts, selectors, clutches, magnets, oil contamination and casing condition are inspected before a final internal repair quotation.
After authorised repairs, applicable coding, software configuration, clutch setup, basic settings, adaptations, fluid checks, post-repair scans and controlled road testing are completed.
DSG Basics
Common Questions
A DSG is a computer-controlled dual-clutch transmission. Its clutches, mechatronic controls, fluid systems and internal components must all work together.
View The Full Gearbox Guide →What Is A DSG?
DSG commonly refers to Volkswagen Group direct-shift dual-clutch transmissions. Audi often uses the S tronic name for related dual-clutch systems.
Can You Diagnose A DSG From A Fault Code?
A code directs testing but does not always prove which component failed. Wiring, voltage, pressure, clutch condition, software and mechanical faults can influence the same code.
Can A Mechatronic Unit Be Repaired?
Some faults can be repaired; others require replacement. The decision depends on gearbox family, internal condition, contamination, software compatibility and parts availability.
Does A DSG Service Fix Shifting Problems?
A service is maintenance, not a guaranteed repair. Fluid cannot fix worn clutches, failed electronics, hydraulic leakage or internal gearbox damage.
How Often Should A DSG Be Serviced?
Intervals vary by gearbox, model and market. The exact transmission and current manufacturer information should be checked before quoting.
Can I Keep Driving With A DSG Warning?
Continuing to drive can increase damage or lead to loss of drive. Stop and arrange towing if the vehicle is unsafe, will not select gears, is leaking heavily or making severe noises.
DSG Gearbox Blog
Repair, Service And Fault Guides
Practical articles about DSG gearbox families, mechatronic faults, clutch problems, diagnostic codes and service decisions.
DQ200 Mechatronic Faults: What The Symptoms Really Mean
A practical guide to DQ200 pressure, pump, accumulator, communication and no-drive faults—and why diagnosis should come before replacement.
Read Article →DQ250 DSG Service Versus Repair: How To Tell The Difference
Understand what a DQ250 service can maintain, what it cannot repair and which symptoms require diagnosis first.
Read Article →DQ381 P1735 And P1736 Clutch-Position Sensor Faults
How DQ381 clutch-position faults are tested using wiring, power, earth, CAN and live-data checks before a mechatronic repair is recommended.
Read Article →DQ500 P1736 Diagnosis: Clutch 2 Position Sensor Fault
A diagnosis-first guide to DQ500 P1736, including power, earth, CAN, harness and clutch-position live-data checks.
Read Article →Wet Versus Dry DSG Clutches: What Owners Need To Know
The practical differences between dry-clutch DQ200 and wet-clutch DSG systems, including service, heat, wear and repair procedures.
Read Article →Can A DSG Mechatronic Be Repaired?
When a DSG mechatronic may be repairable, when replacement is necessary and why clutch or internal damage can change the decision.
Read Article →What You Receive
A Clear, Documented Repair Process
Initial Assessment
A structured inspection based on the reported symptom and the gearbox fitted to your vehicle.
Diagnostic Findings
An explanation of the evidence, likely cause and any limitations requiring further testing or dismantling.
Repair Options
A quotation or next-step recommendation based on findings, parts availability and related component condition.
Post-Repair Procedures
Applicable coding, basic settings, adaptations, fluid checks, scans and road testing.
Why Choose Us
Brisbane DSG Experience In One Workshop
West End Service Centre works with Volkswagen Group vehicles and DSG transmissions. The goal is not to sell the largest repair first—it is to gather enough evidence to recommend the correct next step.
- DSG-focused diagnostic equipment and test procedures
- Experience with dry, wet, longitudinal and hybrid systems
- Mechatronic, clutch, flywheel and internal gearbox options
- Coding, software checks, adaptations and basic settings
- Inner-Brisbane workshop in West End
Book A DSG Diagnostic
Tell Us What Your Gearbox Is Doing
Provide vehicle details, symptoms and known fault codes. The more specific the information, the easier it is to determine the suitable booking type.
